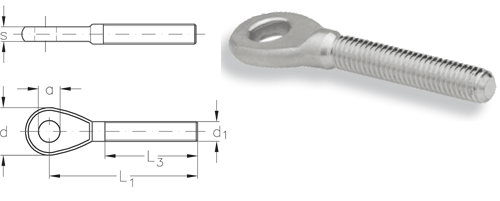

NIRO Threaded Eye, Standard type
| nominal size |
L1 |
L3 |
a |
s |
stock no. |
| d1 |
mm |
mm |
mm |
mm |
|
| M5 |
63 |
41 |
5,5 |
3 |
301510005 |
| M6 |
61 |
47 |
6,5 |
4 |
301510006 |
| M8 |
78 |
57 |
8,5 |
5 |
301510008 |
| M10 |
89 |
63 |
10,5 |
6 |
301510010 |
| M12 |
107 |
80 |
13,0 |
8 |
301510012 |
| M16 |
134 |
100 |
14,5 |
10 |
301510016 |
| M20 |
162 |
120 |
19,5 |
15 |
301510020 |
|

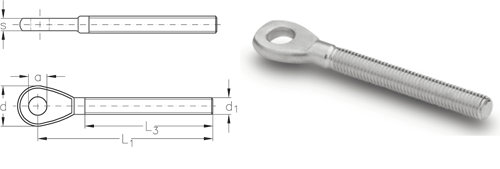

ASS Threaded Eye, Mini type
| nominal size |
L1 |
L3 |
a |
s |
stock no. |
| d1 |
mm |
mm |
mm |
mm |
right hand thread |
left hand thread |
| M5 |
47 |
25 |
5,5 |
3 |
311510005 |
311511005 |
| M6 |
48 |
30 |
6,5 |
4 |
311510006 |
311511006 |
| M8 |
56 |
35 |
8,5 |
5 |
311510008 |
311511008 |
| M10 |
66 |
40 |
10,5 |
6 |
311510010 |
311511010 |
| All threaded jaws are delivered with right hand thread unless specified otherwise. |
