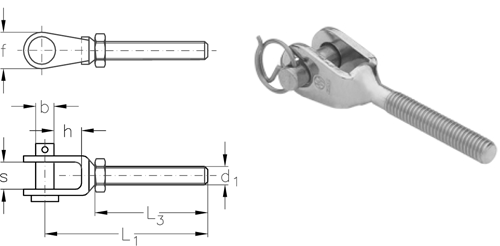

ASS Threaded jaw, Mini type
| thread |
L1 |
L3 |
h |
s |
b |
stock no. |
| d1 |
mm |
mm |
mm |
mm |
mm |
right hand thread |
left hand thread |
| M4 |
40 |
20 |
9 |
7 |
5 |
311520004 |
311521004 |
| M5 |
45 |
25 |
9 |
7 |
5 |
311520005 |
311521005 |
| M6 |
52 |
30 |
8 |
8 |
6 |
311520006 |
311521006 |
| M8 |
57 |
30 |
11 |
11 |
8 |
311520008 |
311521008 |
| M10 |
77 |
40 |
13 |
12 |
9 |
311520010 |
311521010 |
|

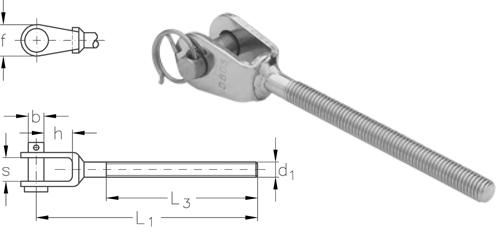

ASS Threaded jaw long, Super-Mini type
| thread |
h |
s |
b |
L1 |
L3 |
stock no. |
| d1 |
mm |
mm |
mm |
mm |
mm |
right hand thread |
left hand thread |
| M4 |
9 |
7 |
5 |
60 |
40 |
321520004 |
321521004 |
| M5 |
9 |
7 |
5 |
70 |
50 |
321520005 |
321521005 |
| M6 |
9 |
8 |
6 |
82 |
60 |
321520006 |
321521006 |
| M8 |
11 |
11 |
8 |
87 |
60 |
321520008 |
321521008 |
| All threaded jaws are delivered with right hand thread unless specified otherwise. |
