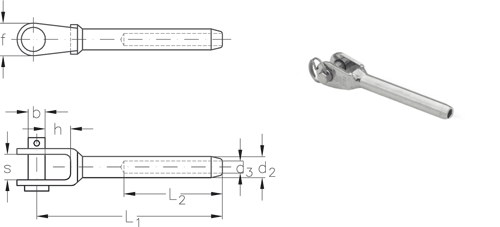

NIRO Jaw terminal, Standard type, welded

|
rope-ø |
d2 |
d3 |
L1 |
L2 |
h |
s |
b |
stock no. |
| mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 3 |
6,3 |
3,3 |
67 |
38 |
8,5 |
7 |
6,0 |
301020003 |
| 4 |
7,5 |
4,3 |
76 |
45 |
11 |
10 |
7,9 |
301020004 |
| 5 |
9,0 |
5,3 |
85 |
52 |
13 |
12 |
9,0 |
301020005 |
| 6 |
12,5 |
6,3 |
108 |
63 |
22 |
13 |
12,0 |
301020006 |
| 7 |
14,2 |
7,3 |
114 |
70 |
22 |
14 |
12,5 |
301020007 |
| 8 |
16,0 |
8,3 |
146 |
80 |
21,5 |
14,8 |
14,9 |
301020008 |
| 10 |
17,8 |
10,5 |
153 |
90 |
24 |
18 |
15,9 |
301020010 |
|

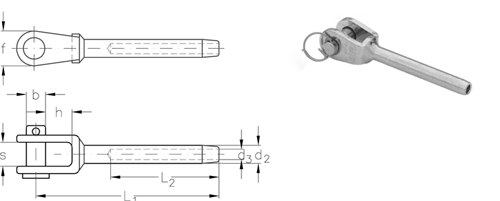

ASS Jaw terminal, Mini type
|
rope-ø |
d2 |
d3 |
L1 |
L2 |
h |
s |
b |
stock no. |
| mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 3 |
6,3 |
3,3 |
56 |
27 |
8 |
7 |
5 |
311020003 |
| 4 |
7,5 |
4,3 |
64 |
35 |
9 |
8 |
6 |
311020004 |
| 5 |
9,0 |
5,3 |
71 |
40 |
11 |
11 |
8 |
311020005 |
| 6 |
12,5 |
6,3 |
86 |
50 |
13 |
12 |
9 |
311020006 |
|

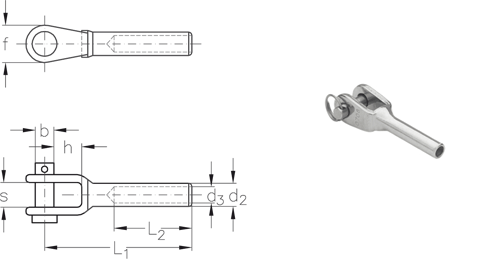

ASS Jaw terminal, Super-Mini type
|
rope-ø |
d2 |
d3 |
L1 |
L2 |
h |
s |
b |
stock no. |
| mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 3 |
5,5 |
3,5 |
45 |
20 |
9,5 |
7,5 |
5 |
321020003 |
| 4 |
6,3 |
4,4 |
45 |
22 |
9,5 |
7,5 |
5 |
321020004 |
| 5 |
7,5 |
5,3 |
52 |
25 |
10,0 |
10,0 |
6 |
321020005 |
| 6 |
9,0 |
6,5 |
58 |
30 |
11,0 |
11,0 |
8 |
321020006 |
