ASS Rigging screw, Maxi type with jaw and terminal
machined or welded
internal thread made of bronze

info
-machined

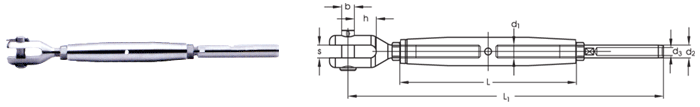

ASS Rigging screw, Maxi type with jaw and terminal machined
rope-ø thread d2 d3 h s b L L1 min. breaking load* stock no.
mm d1 mm mm mm mm mm mm mm kg
12 M20 20,0 12,5 35,5 20 19 240 489,5 13.000 371241220
14 M22 25,0 14,8 38 22 22 270 547 17.000 371241422
16 M22 28,0 17,0 38 22 22 270 572 17.000 371241622
16 M24 28,0 17,0 39,5 25 25 325 638 20.000 371241624
19 M27 34,5 20,0 41 30 28 345 728 25.500 371241927
22 M30 40,5 23,5 51 35 32 375 819 31.000 371242230
26 M36 46,0 27,5 49,5 35 35 410 906 43.000 371242636
* These figures are breaking load limits not working load limits.
-welded

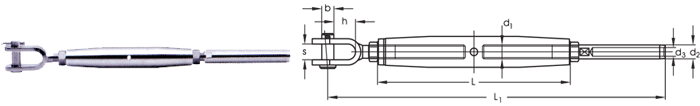

ASS Rigging screw, Maxi type with jaw and terminal welded
rope-ø thread d2 d3 h s b L L1 min. breaking load* stock no.
mm d1 mm mm mm mm mm mm mm kg
12 M20 20,0 12,5 41,0 24 19 240 466 13.000 371251220
14 M22 25,0 14,8 46,5 30 22 270 555,5 17.000 371251422
16 M22 28,0 17,0 46,5 30 22 270 580,5 17.000 371251622
16 M24 28,0 17,0 49,3 30 25,4 325 641 20.000 371251624
* These figures are breaking load limits not working load limits.
