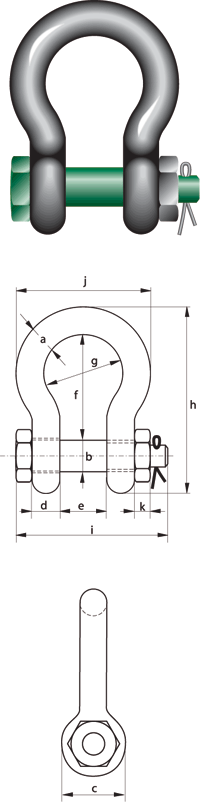

WLL |
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
weight |
stock no. |
| (t) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
| 0,50 |
7,0 |
8 |
16,5 |
7,0 |
12,0 |
29,0 |
20 |
48,5 |
42 |
34 |
4 |
0,06 |
1070179 |
| 0,75 |
9,0 |
10 |
20,0 |
9,0 |
13,5 |
32,0 |
22 |
56 |
50 |
40 |
5 |
0,11 |
1070180 |
| 1,00 |
10,0 |
11 |
22,5 |
10,0 |
17,0 |
36,5 |
26 |
63,5 |
60 |
46 |
8 |
0,16 |
1070181 |
| 1,50 |
11,0 |
13 |
26,5 |
11,0 |
19,0 |
43,0 |
29 |
74 |
67 |
51 |
11 |
0,22 |
1070182 |
| 2,00 |
13,5 |
16 |
34,0 |
13,0 |
22,0 |
51,0 |
32 |
89 |
82 |
58 |
13 |
0,42 |
1070183 |
| 3,25 |
16,0 |
19 |
40,0 |
16,0 |
27,0 |
64,0 |
43 |
110 |
98 |
75 |
17 |
0,74 |
1070184 |
| 4,75 |
19,0 |
22 |
46,0 |
19,0 |
31,0 |
76,0 |
51 |
129 |
114 |
89 |
19 |
1,18 |
1070185 |
| 6,50 |
22,0 |
25 |
52,0 |
22,0 |
36,0 |
83,0 |
58 |
144 |
130 |
102 |
22 |
1,77 |
1070186 |
| 8,50 |
25,0 |
28 |
59,0 |
25,0 |
43,0 |
95,0 |
68 |
164 |
150 |
118 |
25 |
2,58 |
1070187 |
| 9,50 |
28,0 |
32 |
66,0 |
28,0 |
47,0 |
108,0 |
75 |
185 |
166 |
131 |
27 |
3,66 |
1070188 |
| 12,00 |
32,0 |
35 |
72,0 |
32,0 |
51,0 |
115,0 |
83 |
201 |
178 |
147 |
30 |
4,91 |
1070189 |
| 13,50 |
35,0 |
38 |
80,0 |
35,0 |
57,0 |
133,0 |
92 |
227 |
197 |
162 |
33 |
6,45 |
1070190 |
| 17,00 |
38,0 |
42 |
88,0 |
38,0 |
60,0 |
146,0 |
99 |
249 |
202 |
175 |
19 |
8,19 |
1070191 |
| 25,00 |
45,0 |
50 |
103,0 |
45,0 |
74,0 |
178,0 |
126 |
300 |
249 |
216 |
23 |
14,22 |
1070192 |
| 35,00 |
50,0 |
57 |
111,0 |
50,0 |
83,0 |
197,0 |
138 |
331 |
269 |
238 |
26 |
19,85 |
1070193 |
| 42,50 |
57,0 |
65 |
130,0 |
57,0 |
95,0 |
222,0 |
160 |
377 |
301 |
274 |
29 |
28,33 |
1070194 |
| 55,00 |
65,0 |
70 |
145,0 |
65,0 |
105,0 |
260,0 |
180 |
433 |
330 |
310 |
32 |
39,59 |
1070195 |
| 85,00 |
75,0 |
83 |
162 |
73,0 |
127,0 |
329,0 |
190 |
527 |
380 |
340 |
39 |
62,00 |
1070196 |
| Material |
Bow and pin high tensile steel, Grade 6, tempered |
| safety factor: |
MBL = 6-fold WLL |
| standards: |
EN 13889 and meets the performance requirements of US Fed. Spec. RR-C-271
Typ IVA Class 3, Grade A |
| surface treatment: |
galvanized |
| Operating temperature range: |
-20 °C bis + 200 °C |
|
