ASS Tensioning unit for decoration purposes

	nominal size	rope-ø	L	L1	L3	L4	d	d1	d2	d3	d4	stock no.
		mm	mm	mm	mm	mm	mm		mm		mm
	2	1,5+2	35	20	18	26	16	M12	2,5	M5	6	351410002
	4	3+4	40	25	23	33	20	M16	4,5	M6	12	351410004

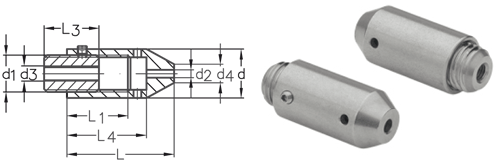

	example pictures
