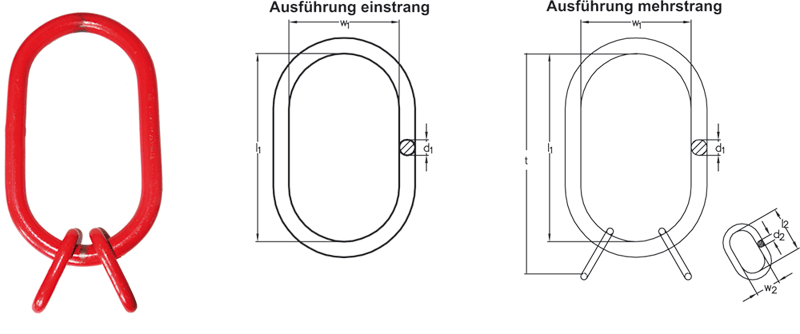

	Special master link type SA

for crane hooks no. 16
nominal size	WLL	fits for chain			d1	l1	w1	d2	l2	w2	t	weight	stock no.
	kg 0-45°	1-leg	2-leg	3/4-leg	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
16-22/13	2.800		8-8	6-8	22	260	140	13	60	30	320	3,30	1150036
16-22	3.150	10-8			22	260	140				260	2,9	1150037
16-26/16	4.250		10-8	8-8	26	260	140	16	70	35	330	3,90	1150038
16-26	5.300	13-8			26	260	140				260	3,2	1150039
16-32/20	7.500		13-8	10-8	32	260	140	20	90	45	350	6,5	1150040
16-32	8.000	16-8			32	260	140				260	5,00	1150041
16-36/22	11.200		16-8	13-8	36	260	140	22	100	50	360	8,1	1150042
16-36	10.000	18-8			36	260	140				260	6,2	1150043
for crane hooks no. 25
nominal size	WLL	fits for chain			d1	l1	w1	d2	l2	w2	t	weight	stock no.
	kg 0-45°	1-leg	2-leg	3/4-leg	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
25-24	3.150	10-8			24	340	180				340	3,7	1150044
25-26/16	4.250		8/10-8	8-8	26	340	180	16	70	35	410	5,50	1150045
25-26	5.300	13-8			26	340	180				340	4,70	1150046
25-32/20	7.500		13-8	10-8	32	340	180	20	90	45	430	7,8	1150047
25-32	8.000	16-8			32	340	180				340	6,3	1150048
25-40/22	11.200		16-8	13-8	40	340	180	22	100	50	440	11,80	1150049
25-40/26	17.000		18-8	16-8	40	340	180	26	120	60	460	13,1	1150050
25-40	15.000	18/20/22-8			40	340	180				340	9,9	1150051
