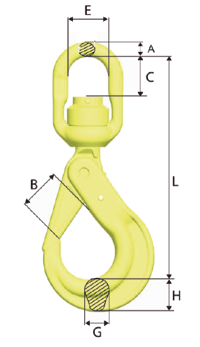

	Safety swiel hook type BKLK with ball bearing

	nominal size	WLL	L	B	C	E	A	G	H	weight ca.	stock no.
		(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
	6-10	1.500	149	29	24	33	11	15	21	0,7	1170083
	7/8-10	2.500	183	37	27	38	12	17	26	1,2	1170084
	10-10	4.000	218	45	35	44	15	21	31	2,0	1170085
	13-10	6.700	280	55	45	48	19	30	40	4,00	1170086
	16-10	10.000	339	62	63	61	25	37	50	7,40	1170087
	20-10	16.000	368	68	59	72	31	44	62	11,50	1170088
	When loaded in line along centre line. These hooks can be revolved wehen loaded.
