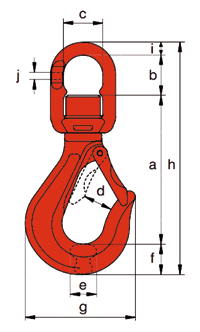

	Swivel hook type CSE with axial needle roller bearings

	nominal size	WLL	a	b	c	d	e	f	h	i	weight	stock no.
		(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
	6-8	1.120	100	33	32	27	15	19	164	12	0,55	1150110
	7/8-8	2.000	126	39	37	30	20	22	200	14	1,00	1150111
	10-8	3.200	159	47	48	33	24	29	250	16	1,90	1150112
	13-8	5.400	189	59	58	36	32	39	307	21	3,42	1150113
	16-8	8.200	216	68	73	43	40	44	352	25	6,25	1150114
	18/20-8	12.800	263	87	82	59	49	62	437	25	10,50	1150115
	When loaded in line along centre line. These hooks can be revolved wehen loaded.
