	MAXNORM Master link with eye-connector grade 120

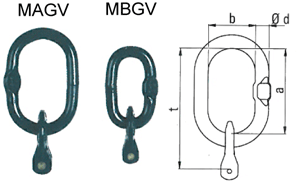

for 1-leg chain sling	code	WLL	d	a	b	t	weight	stock no.
		(kg)	(mm)	(mm)	(mm)	(mm)	(kg)
	MAGV 1-8	3.000	18	135	75	185	1,30	1190004
	MAGV 1-10	5.000	22	160	90	223	2,10	1190005
	MAGV 1-13	8.100	26	180	100	258	3,70	1190006
	MBGV 1-8	3.000	18	85	40	135	1,00	1190007
	MBGV 1-10	5.000	22	115	50	178	2,10	1190008
	MBGV 1-13	8.100	26	140	65	218	3,20	1190009

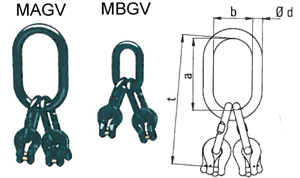

for 2-leg chain sling	code	WLL (kg)		d	a	b	t	weight	stock no.
		0°-45°	45°-60°	(mm)	(mm)	(mm)	(mm)	(kg)
	MAGV 2-8	4.250	3.000	22	160	90	210	2,2	1190010
	MAGV 2-10	7.100	5.000	26	180	100	243	3,60	1190011
	MAGV 2-13	11.300	8.100	32	200	110	278	6,50	1190012
	MBGV 2-8	4.250	3.000	18	85	40	135	1,30	1190013
	MBGV 2-10	7.100	5.000	22	115	50	178	2,30	1190014
	MBGV 2-13	11.300	8.100	26	140	65	218	4,50	1190015
for 3-leg chain sling	code	WLL (kg)		d	a	b	t	weight	stock no.
		0°-45°	45°-60°	(mm)	(mm)	(mm)	(mm)	(kg)
	MAGV 4-8	6.300	4.500	26	180	100	315	5,20	1190016
	MAGV 4-10	10.600	7.500	32	200	110	378	8,50	1190017
	MAGV 4-13	17.000	12.000	36	260	140	478	15,20	1190018
	MBGV 4-8	6.300	4.500	22	115	50	250	3,70	1190019
	MBGV 4-10	10.600	7.500	26	140	65	318	6,50	1190020
	MBGV 4-13	17.000	12.000	32	150	70	368	11,90	1190021
