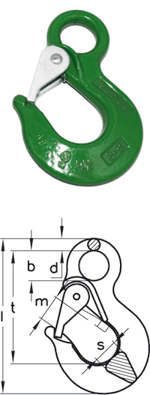

SIKA-Safety eye hook
Sika-Haken

- with extro solid safety latch

 nominal size WLL b d l m s t weight stock no.
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
4-8 500 25 10 130 20 20 93 0,4 1060525
5-8 800 26 10 133 22 21 95 0,6 1060526
6-8 1.120 27 13 147 24 24 105 0,8 1060527
7-8 1.500 28 14 160 28 25 115 0,9 1060528
8-8 2.000 32 14 169 29 28 123 1,1 1060529
9-8 2.700* 34 16 190 34 29 137 1,5 1060530
10-8 3.150 34 17 195 34 30 138 1,6 1060531
11-8 4.000 40 20 227 40 34 164 2,5 1060532
13-8 5.300 50 23 255 45 38 188 3,7 1060533
14-8 6.300* 52 24 288 50 39 213 4,8 1060534
16-8 8.000 54 26 299 57 39 216 5,0 1060535
18-8 10.000 60 34 329 61 45 234 8,0 1060536
* Working load limit slightly higher than EN 1677-2 (grad 80)
in adaptation of the working load limit of lifting ropes.
