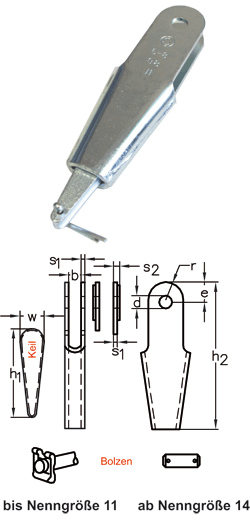

	Open wedge socket acc. to former DIN 15315

(nominal size 6,5 and 25-40 non standard) without bolt, galvanized	nominal size	rope-ø	b	e	s1	s2	h2	d	r	h1	w	weight	stock no.
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)	without bolt
	5	4-5	12	14	3	-	110	10	12	68	19	0,20	1060468
	6,5	5-6,5	10	16	4,5	-	100	10	14	58	19	0,20	1060469
	8	6-8	14	20	4	-	150	12	18	92	25	0,50	1060470
	11	9-11	17	26	6	-	190	16	23	117	32	1,00	1060471
	14	12-14	22	32	8	-	230	18	28	141	38	2,10	1060472
	17	15-17	25	36	10	-	260	22	32	162	46	3,70	1060473
	20	18-20	27	40	12	-	300	25	35	186	52	5,40	1060474
	25	22-25	33	40	12	-	285	40	44	180	60	6,20	1060475
	30	26-30	40	55	14	22	335	50	55	182	62	10,10	1060476
	35	31-35	44	60	27	35	390	55	60	207	68	23,60	1060477
	40	36-40	50	70	29	37	460	60	65	231	70	33,20	1060478
		bolt and wedge for open wedge socket acc. to former DIN 15315, galvanized
		nominal size	rope-ø		stock no.			stock no.
			(mm)		bolt			wedge
		5	4-5		1060514			1060479
		6,5	5-6,5		1060515			1060480
		8	6-8		1060516			1060481
		11	9-11		1060517			1060482
		14	12-14		1060518			1060483
		17	15-17		1060519			1060484
		20	18-20		1060520			1060485
		25	22-25		1060521			1060486
		30	26-30		1060522			1060487
		35	31-35		1060523			1060488
		40	36-40		1060524			1060489
