	Wire rope clips DIN 741/DIN EN 13411-5

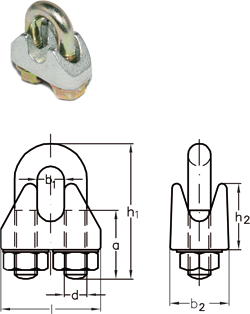

previous DIN 741, galvanized	nominal size =	a	b1	b2	d	h1	h2	l	weight	stock no.
	rope-ø (mm)	(mm)	(mm)	(mm)		(mm)	(mm)	(mm)	(kg)
	3	12	4	10	M 4	20	10	21	0,007	163 0141
	5	13	6	11	M 5	24	10	23	0,015	1060142
	6,5	15	8	12	M 5	28	11	26	0,019	1060143
	8	19	9	14	M 6	34	15	30	0,032	1060144
	10	22	11	18	M 8	42	17	34	0,066	1060145
	11	22	12	19	M 8	44	18	36	0,071	1060146
	13	30	14	23	M10	55	21	42	0,125	1060147
	14	30	15	23	M10	57	22	44	0,140	1060148
	16	33	17	26	M12	63	26	50	0,205	1060149
	19	38	20	29	M12	75	30	54	0,308	1060150
	22	44	23	33	M14	85	34	61	0,357	1060151
	26	45	27	35	M14	95	37	65	0,569	1060152
	30	50	32	37	M16	110	43	74	0,618	1060153
	34	55	36	42	M16	120	50	80	0,868	1060154
	40	60	42	45	M16	140	55	88	1,090	1060155
	45	65	47	49	M18	165	65	112	1,480	1060156
	50	67	54	51	M18	170	67	121	1,950	1060157
	Wire rope clips previous DIN 741 are not suitable for safety applications.

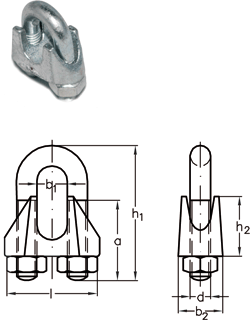

acc. to DIN EN 13411-5, galvanized	nominal size	a	b1	b2	d	h1	h2	l	weight	stock no.
	rope-ø (mm)	(mm)	(mm)	(mm)		(mm)	(mm)	(mm)	(kg)
	5	13	7	13	M 5	25	13	25	0,021	1060127
	6,5	17	8	16	M 6	32	14	30	0,040	1060128
	8	20	10	20	M 8	41	18	39	0,082	1060129
	10	24	12	20	M 8	46	21	40	0,092	1060130
	12	28	13	24	M10	56	25	50	0,173	1060131
	13*	30	15	28	M12	64	29	55	0,275	1060132
	14	31	14	32	M12	66	30	59	0,276	1060133
	16	35	18	32	M14	76	35	64	0,430	1060134
	19	36	22	32	M14	83	40	68	0,490	1060135
	22	40	24	34	M16	96	44	74	0,680	1060136
	26	50	26	38	M20	118	51	84	1,170	1060137
	30	55	34	41	M20	131	59	95	1,400	1060138
	34	60	38	45	M22	150	67	105	2,130	1060139
	40	65	44	49	M24	167	77	117	2,680	1060140
	* NG 13 not acc. to standard
