	Nylon-thimble

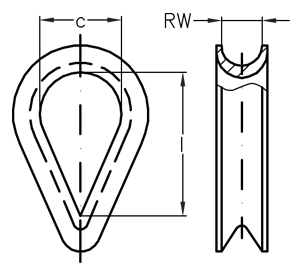

	nominal size	RW	c	l	weight	stock no.
		(mm)	(mm)	(mm)	(kg)
	3	3,2	6	9	0,001	1060203
	4	4,0	9	13	0,001	1060204
	6	5,6	12	18	0,002	1060205
	7	6,6	14	21	0,003	1060206
	9	7,9	20	29	0,005	1060207
	12	11,5	24	42	0,009	1060208
	13	12,0	26	45	0,013	1060209
	16	14,5	30	49	0,017	1060210
	18	17,4	36	53	0,027	1060211
	Dimensiaon c corresponds to the bolt diameter.
