Attachment swivel THEIPA® Point-F
with internal thread

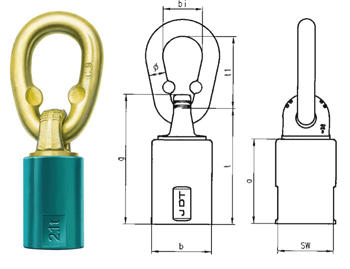

Attachment swivel THEIPA Point-F, with internal thread
code thread version tightening pitch a b g SW t link weight
torque stock no.
d x e (mm) (Nm) DIN 13 (mm) (mm) (mm) (mm) (mm) ø x t1 x bi (kg)
TP-F 0,5 M12x15 15-40 1,75 45,0 36,5 73 34 66 13x55x32 0,61 1210035
TP-F 1,0 M16x20 45-130 2,00 52,0 36,5 80 34 73 13x55x32 0,65 1210036
TP-F 1,7 M20x25 100-170 2,50 66,0 52,0 106 46 95 16x70x34 1,50 1210037
TP-F 2,1 M24x30 190-280 3,00 80,0 57,0 120 50 108 18x85x45 2,12 1210038
TP-F 3,2 M30x40 230-400 3,50 94,0 70,0 148 65 131 20x85x45 3,70 1210039
TP-F 5,0 M36x45 270-600 4,00 107,0 80,0 164 75 145 23x115x60 5,75 1210040
kind of attachment
number of pieces 1 1 2 2 2 2 3 oder 4 3 oder 4
inclination angle 0° 90° 0° 90° 0-45° 45-60° 0-45° 45-60°
code WLL (kg)
TP-F 0,5 M12 1400 500 2.800 1.000 700 500 1.000 750
TP-F 1,0 M16 2800 1000 5.600 2.000 1.400 1.000 2.120 1.500
TP-F 1,7 M20 5.000 1.700 10.000 3.400 2.400 1.700 3.550 2.500
TP-F 2,1 M24 8.000 2.100 16.000 4.000 2.800 2.100 4.250 3.150
TP-F 3,2 M30 12.000 3.200 24.000 6.400 4.250 3.150 6.700 4.750
TP-F 5,0 M36 15.000 5.000 30.000 10.000 6.700 5.000 10.000 7.500
The advantages:

- all of the THEIPA Point´s advantages have also been considered in this case
- the thread´s depth is 1.25 times its diameter as a rule
- the stamped WLL applies to the kind of attachment by 90°
- bolts of the quality class 10.9 crack-tested are permitted as connecting elements
- different threaded versions and lengths can be supplied on request
- secured four times against breakage in all load directions
In case of an unsymmetrical load distribution,
the lifting capacities applicable to the 2 and 3/4-leg slings are the same as for 1-leg types at 90°.
